DB 1000 Under Vehicle Control System

Consists of 2 Different Cameras.

1. Camera: Camera on Wheeled Mount
2. Camera: Flexible Arm (Tubular) Camera

Apart from the camera recording feature for 8 hours, there is also the feature of taking photos.
It gives traces after shooting.

Technicial Specifications

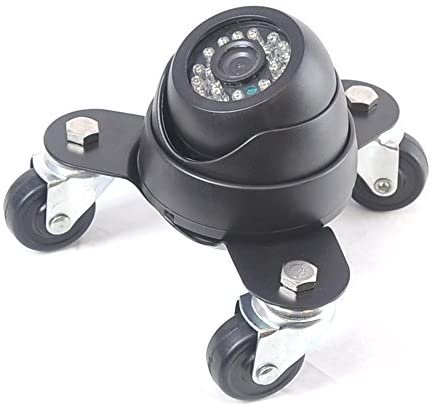

Camera on Wheeled Mount
Optical Element: 1/2.5 CMOS Sensor SONY
Optical Total Pixels: 5.0 Mega：3200（H）×1800（D）
CMOS Sensor Size: 5.6mm（H）×3.14mm（V）
LED Lamps: 16pcs LED lights high luminous
Sensitivity: 0.08Lux/F1.2
Lens & Viewing Angle: 3.6mm F1.2 (H )120°
HD Video Output Interface: FPD-LinkⅢ
Wheeled Trolley: Wheel that rotates in all directions
Size and Weight: 37 x 46mm, 35gr. (only camera)

Flexible Arm (Tubular) Camera
Optical Element: 1/3 CMOS sensor
Optical Total Pixels: 5.0 Mega：3200（H）×1800（D）
CMOS Sensor Size: 5.07mm（H）×3.38mm（V）
LED Lamps: 6 pcs LED lights high luminous
Sensitivity: 0.2Lux/F1.2
Lens & Viewing Angle: 0.5mm F1.2 120°
HD Video Output Interface: FPD-LinkⅢ
Size and Weight: 18 x 28mm., 10gr.
Flexible Pipe Length: 25 cm. soft metal pipe

Telescopic Arm
Shortened Length: 58 cm
Unfolded Length: 228 cm

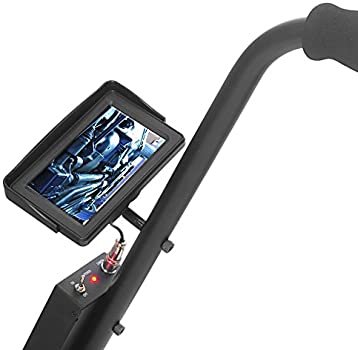

7 inch monitor
HD Video Output: HDMI: 1920x1080 - 1280x720
Recorded Video: (16:9:） HDMI: 1920x1080 - 1280x720)
Video Compression Format: H.264
Video Storage: AVI
HD Digital Video Input Interface: FPD-LinkⅢ
Photo Format: JPG 5.0 MP: 3200×1800
External Storage TF Card: TF Card 1GB-64GB（Optional）
Language: Multi-Language Option (Including Turkish)
Voltage: DC :7-24V USB DC:5V
Current (Monitor Mode): 600 mA
Current (Video Mode): 700 mA
AC Adapter: DC 12V 1A
Internal Battery: Lithium Battery 5000mAh
Recording time: 8 hours
Size: 177mm x120mm x 20mm
Sun visor: One press sun visor
Weight: 350 gr.

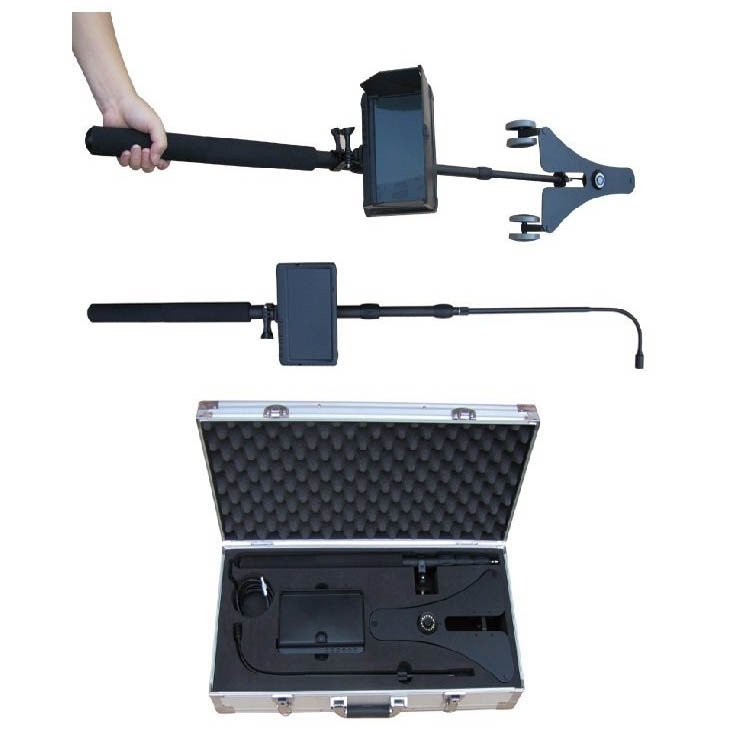

Package Contents
7 inch monitor
2 meters telescopic arm
Flexible tube (arm) camera
Camera on wheeled car
HDMI cable
USB cable
Adapter
Aluminum alloy case
User guide
