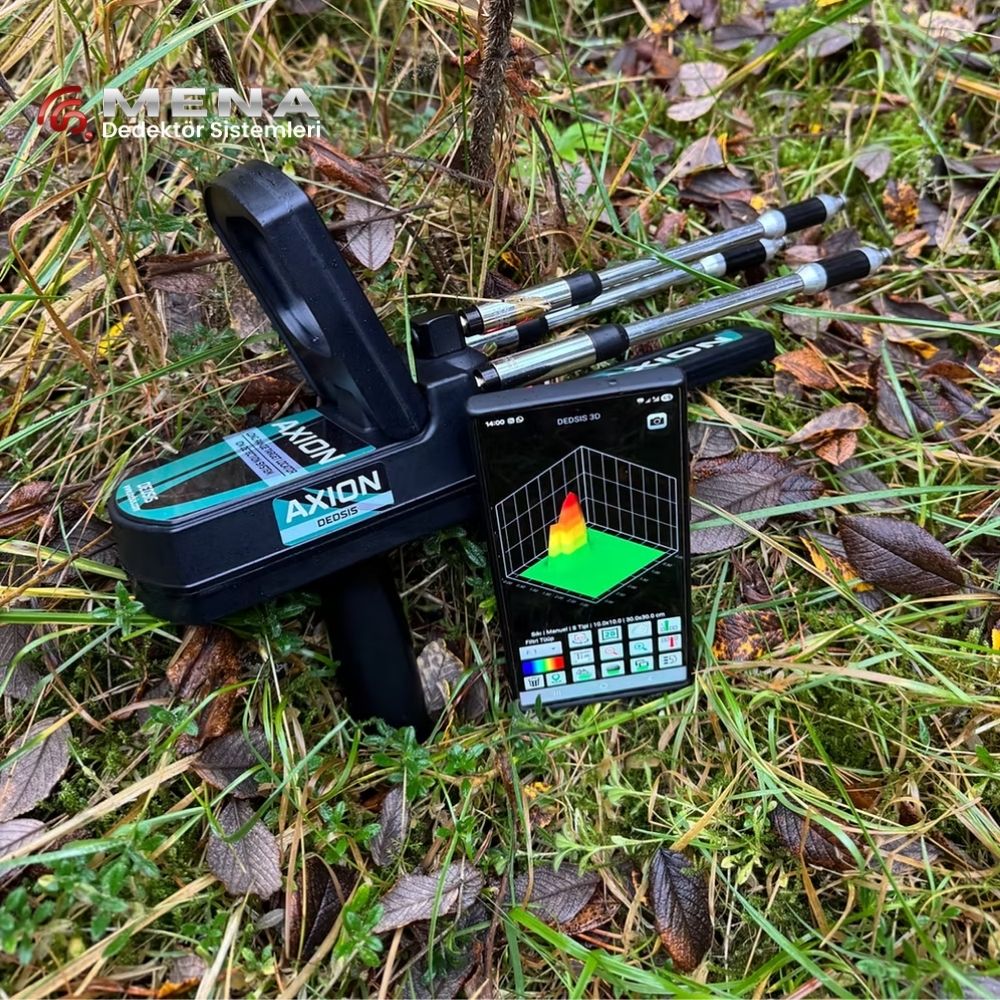

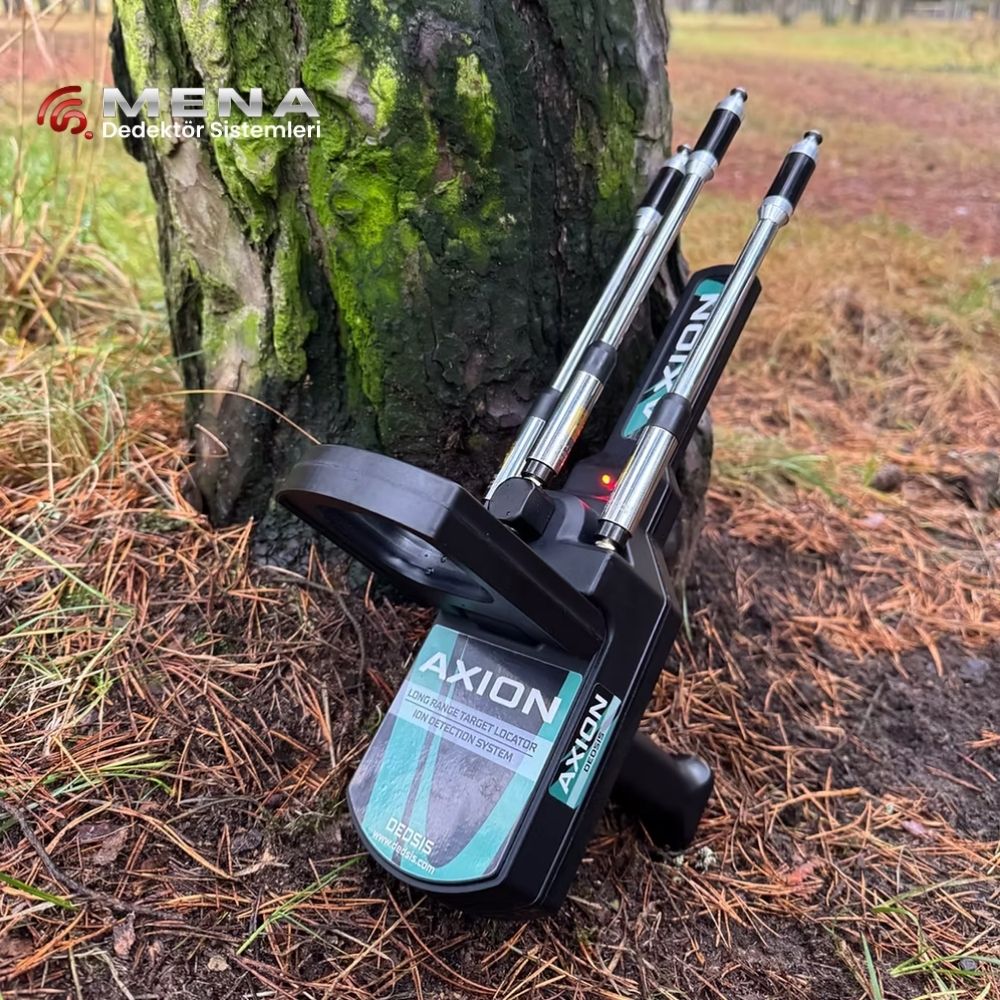

AXION | Multi-Frequency Field Scanning and Ion Detection System

AXION is a new generation professional underground detection and analysis device that works with multi-frequency technology (Hz – kHz – MHz).

Developed by Dedsis OÜ, this system works integrated with its Android-based special software and offers the user real-time target detection, frequency control, ion analysis and 3D visualization. All operations are performed wirelessly via Bluetooth connection.

Technological Features

Multi-Frequency System (Hz/kHz/MHz)

AXION operates in three different frequency ranges, providing high accuracy on a wide range of targets, from small stones to large metal masses.

• Hz frequency: Small pieces of metal and precious stones
• kHz frequency: Single and group coins
• MHz frequency: Large metal masses and deep burials

Each frequency range is optimized in terms of magnetic field strength and energy output.

Multi-Frequency Technology

Unlike traditional devices, AXION performs an intensive scan in the target area by sending hundreds of frequency combinations per second.

This technology; It provides more reliable results by being minimally affected by depth differences, alloy types, oxidation and environmental factors. Users can also customize the device according to the search scenario by manually entering the frequency.

Search Modes: Normal – Pulse – Multi

• Normal mode: Detects small targets with maximum sensitivity
• Pulse mode: Focuses on large targets by filtering out small metals
• Multi mode: Provides maximum depth by using all frequencies simultaneously

Thanks to these modes, it offers flexible use on targets of different sizes.

Ion Detection System

AXION can detect oxidized metals and gas concentrations that have remained underground for long periods of time.

It increases search efficiency by giving strong signals in tombs, rooms and cavity structures.

EXTRA Mode Technology

EXTRA modes developed specifically for AXION; In addition to cavities, it can detect methane gas, oxidized metal remains and traces of ancient burials.

Thanks to this mode, the remains of more than one target in an area can be analyzed and the probability of reaching the real target is increased.

Gold and Silver Modes

It offers special modes according to the frequency differences of gold and silver alloys used in different civilizations.

More precise detection can be made with options such as Roman Gold and Byzantine Silver, as well as modes that provide general coverage.

Scan Power and Sensitivity Adjustment

AXION's advanced scanning system is controlled by two basic parameters:

• Scanning power: Determines the coverage area and magnetic field width
• Sensitivity: Increases target focusing accuracy

Thanks to these settings, both wide area scans and pinpoint detections can be made.

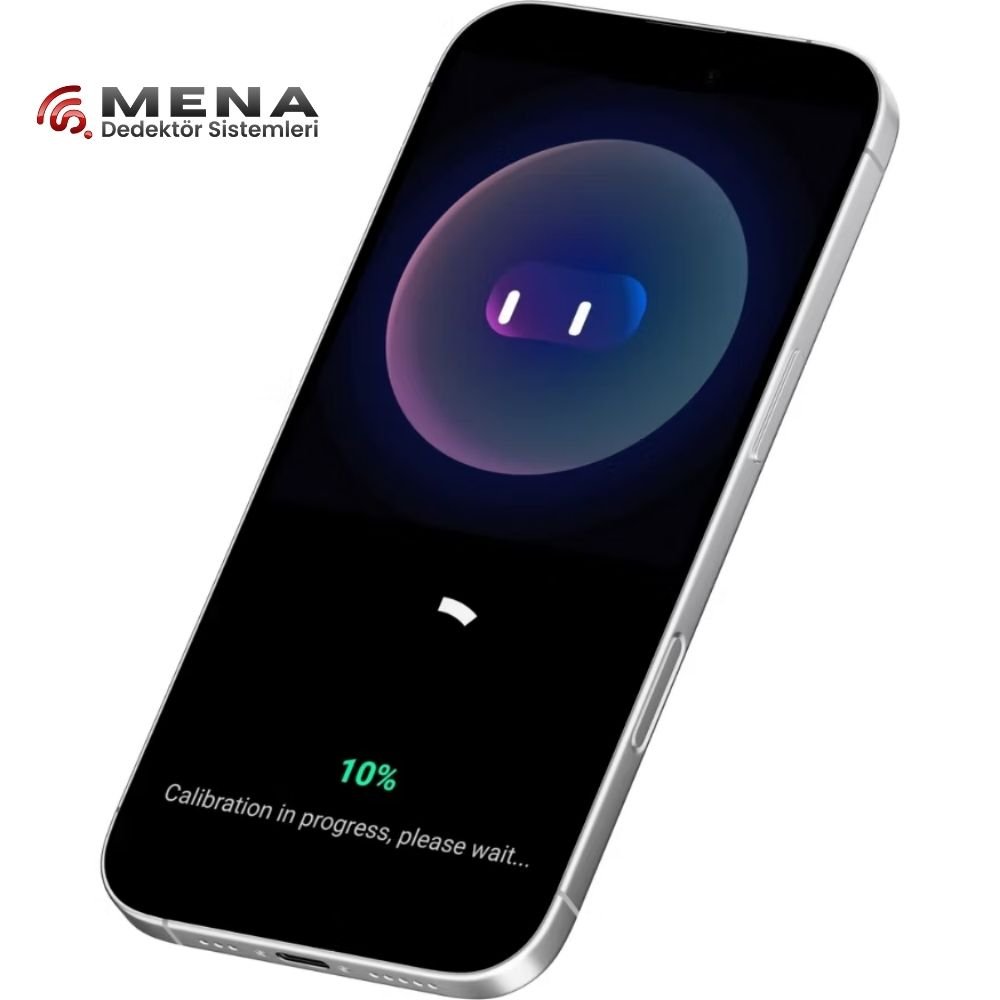

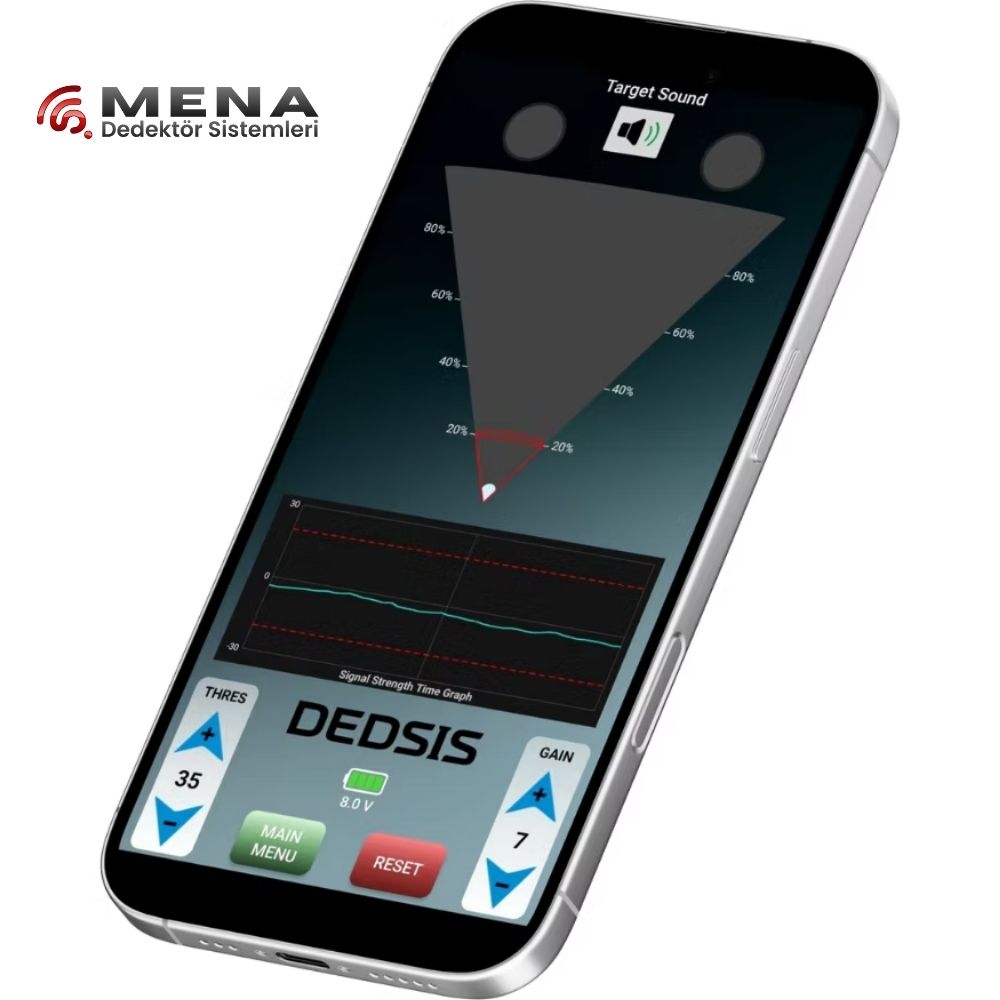

Android Software and Bluetooth Connection

AXION works with the Dedsis 3D Android application.

Thanks to Bluetooth connection, data transfer is provided between the device and the mobile application. Users can control frequency selection, mode settings, power and sensitivity via the application.

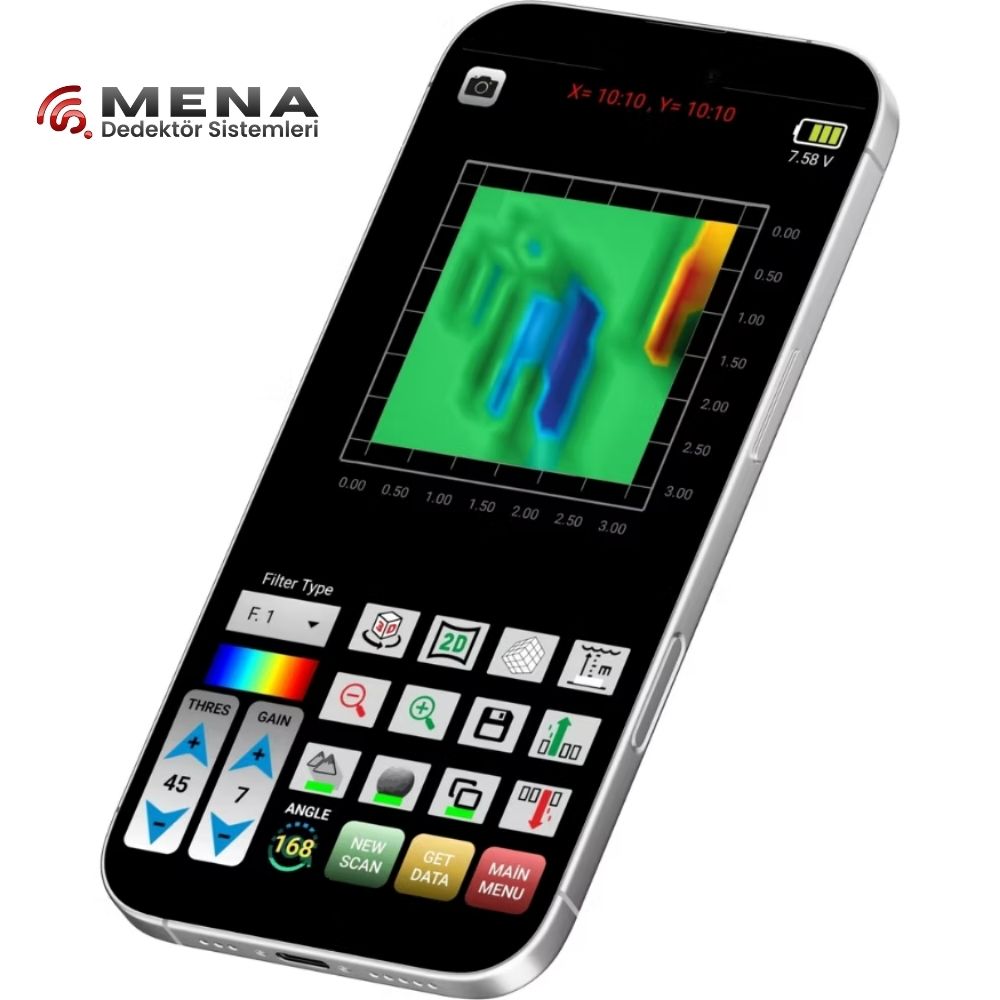

3D visualization feature is offered as a licensed package. Battery status, connection information and browsing data can be monitored instantly via the application.

Areas of Use

• Archeology and geology studies
• Treasure and metal detecting
• Gemstone and mineral analysis
• Underground structure and void detection

Technical Specifications

• Model: AXION
• Frequency ranges: Hz, kHz, MHz
• Modes: Normal, Pulse, Multi
• Detection systems: LRL, Ion detection, 3D imaging
• Connection: Bluetooth
• Battery tracking: Real-time via app
• Scanning power and sensitivity: Manually adjustable
• EXTRA mode: Cavity and metal debris detection
• Manual frequency: 0 – 12 MHz
• Software compatibility: Dedsis 3D (Android)

AXION

It offers a professional-level field scanning experience by combining frequency technology, ion analysis and advanced software support.

It was developed for users who want to analyze the underground more accurately and detect targets with high precision.
