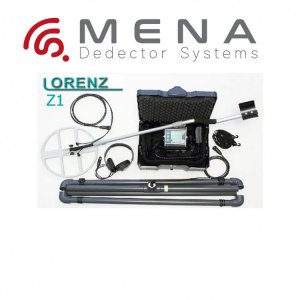

Lorenz Deepmax Z1 Treasure Detector

LORENZ DEEPMAX Z1 VIDEOS:

FUNCTION

LORENZ DEEPMAX Z1 is based on a motionless Pulse GBS (Pulse Ground Balancing System). Short and strong magnetic pulses are first emitted through the detection coil. These magnetic pulses generate eddy currents in conductive metal objects. These eddy currents will remain in the metal object and disappear once the transmitted magnetic pulse ceases. Since the delayed detection phase is also carried out via the same detection coil (now acting as a receiver), it is possible to detect these eddy currents.

Detecting these small voltage changes and separating these special signals from interference requires highly complex electronic circuits. To amplify this signal into an audible phase, a voltage-controlled oscillator (VCO) must be used. That is, when a metal object appears near the detection field, the VCO will send a signal via headphones or the built-in speaker. The eddy currents generated in the metal object by the primary ground pulse will disappear at different times depending on the conductivity of the metal object.

A classification circuit provides noticeable delays in the readings of eddy currents received within a specific time frame. Additionally, metal or non-metal detection of all types of minerals is possible with the Double D coil. This provides more information about the possible type of material and makes it easier to locate and determine the size of buried metal objects through sound output.

ADVANTAGES

The Pulse GBS system provides advantages in using large coils and high transmission power. These are especially necessary for deep detections. Various wired coils of different sizes and shapes can be connected to the LORENZ DEEPMAX Z1 without requiring any adjustments.

A special adaptation circuit was added to automatically adjust to different coil systems. This provides exceptional depth capability when connected to any coil. As the diameter of the detection coil increases, the sensitivity to large objects will also increase. At the same time, smaller objects will be detected with less sensitivity. This feature is preferred when detecting large objects and ignoring small ones.

Even in difficult terrains with high iron oxide magnetization, the LORENZ DEEPMAX Z1 provides exceptional depth capability for both ferrous and non-ferrous metals (gold, silver, copper, etc.) when using the Ground Balance System.

The DEEPMAX Z1 also provides a visual indication on the LCD screen for each detected metal. Based on reading delay, the detector assigns a number between 000-099 for material classification. The classification circuit may be affected by the object's size, meaning small coins might be classified as large metal objects.

APPLICATIONS

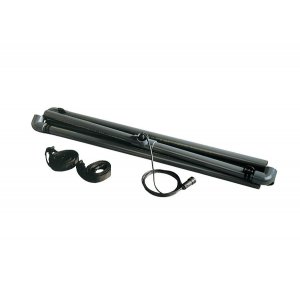

The DEEPMAX Z1 was developed for professional detection applications. Various detection coils can be connected to this metal detector. Large areas can be efficiently scanned with frame coils.

LORENZ Z1 Data Logger Surfer 11 software is an optional accessory sold separately. Once field data is collected, the Surfer 11 software quickly and accurately converts stored data on a USB stick into color maps, contour, surface, image, or vector maps on a computer.
