Okm Exp 4500 Pro Plus (Full)

OKM EXP 4500 Professional 3D Scanner offers numerous functions, it can detect buried objects, gold mineralization, gold, silver.

The EXP 4500 is a high performance metal detection instrumentation designed specifically for the following applications:
- detection of metals
- auriferous search
- the location of the detection position
- 3D vision with size, shape and depth
- detection of voids: tunnels, tunnels, caves, valleys, etc.

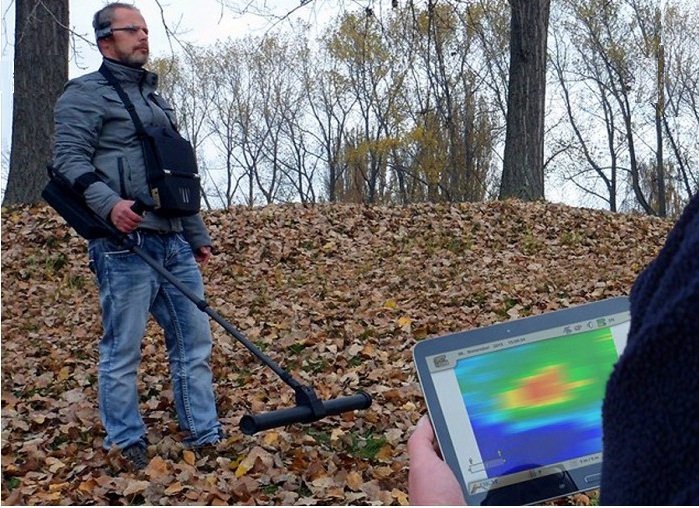

The EXP 4500 offers a real-time 3D scan directly on the monitor, you don't need any laptop to view the image during the process, the results are immediately displayed during the search.

All scans made in the field can be saved to internal memory and later transferred to a PC for more accurate analysis.

Processing via portable PC (included) with Visualizer 3D software allows the user to customize images their size, depth, etc. Allows processing to determine.

The EXP 4500 can also work in highly mineralized soils.

Multi-language interface: English, French, Spanish

Probes for specific professional and targeted use (optional):
- 25 cm / 50 cm / 75 cm / 100 cm GPR antenna
- tunnel antenna
- Super Sensor for high resolution scans and pinpointer functionality
- FS-Thermoscan for 3D infrared images

Advantages:
- lightness
- non-invasive scans
- real time
scans - easy and fast in settings
- colors for easy interpretation of images
- anomaly at the immediate localization site
- The exact location of the anomaly in the 3D graph

EXP 4500 search mode (with included and optional accessories):
- Ground Scan
- Mineral Scanning
- Tunnel Scan
- Pin Marker
- Thermo Graphic
- Magnetometer

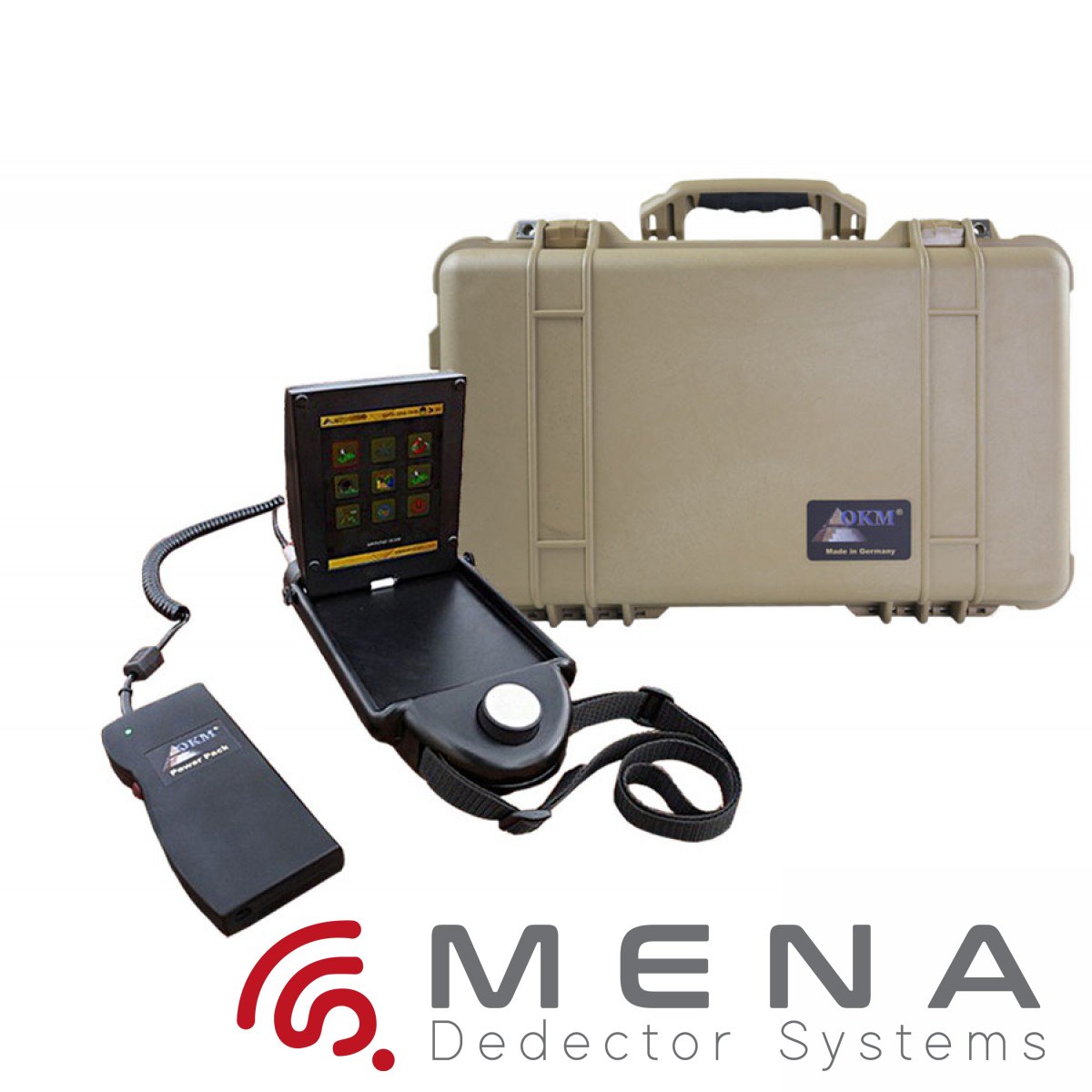

EXP 4500 Professional includes:
- control unit
- GPR antenna (25 cm)
- telescopic rod
- stereo headphones
- Visualizer 3D software
- joystick
- USB cable
- 10" computer
- No. 2 rechargeable batteries
- Super Sensor
- carry bag

Controller features
- Operating temperature: 0 °C - 70 °C
- Storage temperature: -20 °C - 60 °C
- Humidity: 5% - 75%
- Waterproof: no
- Dimensions: 20 x 160 x 295 mm
- Weight: about 1350 g
- Voltage: 12 - 14.4 VDC, 22 W max
- Degree of protection: IP40
- Operational autonomy: about 3 hours
- Backlit display 300mcd, 6.4" diagonal, 480 x 640 Pixel TFT, Color
- Processor: 800 MHz, INTEL i586 compatible
- Working memory: 256 MB RAM
- Data memory: 256 MB
- Reported: audio and video
- Data transfer: USB
- Technology: USB
- Maximum transfer rate: 115200 Baud

Minimum requirements Computer
- CD-ROM: 4x minimum
- USB interface
- Minimum 50 MB of free disk space
- Minimum 256 MB of RAM
- Minimum 128 MB graphics card, OpenGL compatible
- 1.2 GHz minimum processor
- Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
