Okm Exp 6000 Professional

OKM EXP 6000 3D Wireless metal detector for ground scanning with glasses and visualization on the touch screen.

The EXP 6000 3D metal detector is completely wireless and can be controlled via the touch screen. The screen is made with Android glasses or Android Tablet PC.

Use the telescopic OKM probe, which can extend from 50 to 120 cm. Multilingual user interface and wireless measurements are unique features and provide easy operation.

The EXP 6000 uses Visualizer 3D software to analyze graphical images of the scan for detected objects and determine the depth and size of underground targets.

EXP 6000 metal detector 3D scanner detects:
- precious metal objects such as gold, silver, copper and bronze
- caves, walls, etc. non-metallic underground structures such as...
- minerals

Telescopic connecting rod for connecting one of the following measuring probes.
- Telescopic probe specified for scanning large areas or small areas.
- Uses super sensor, ground probe, discrimination and pinpointing function.
- Tunnel sensor, measuring probe for detecting tunnels, caverns and many other cavernous lenses (optional)
- LiveStream sensor, scanning probe, measurement data will be displayed on the screen to see objects "live" underground (optional)

10 selectable software languages ​​including Turkish and more.

Features
- Control unit operating temperature: 0 °C - 70 °C
- Storage temperature: -20 °C - 60 °C
- Humidity: 5% - 75%
- Not waterproof
- Dimensions: 320 x 190 x 95 mm
- Weight: 2.2 kg approx.
- Voltage 11.8-14.8 VDC, max. 30W
- Degree of protection IP40
- Working autonomy: about 3 hours
- Display diagonal 6.5", 1024 x 768 pixels TFT, color, 650 cd/mq
- AMD QuadCore @ 2 GHz processor, OpenGL 4.2 HD Radeon GPU
- 4GB Kingston HyperX working memory
- Data memory 16 GB industrial SDCard, class 10
- Acoustic and visual warning
- 802.11na/b/g Wi-Fi data transmission, MIMO 2x2
- 11 Mbps - 54 Mbps data transmission
- Working distance: 30 meters

Establish a wireless data connection to the 3D detector using the eXp 6000 measuring probes WiFi system.

The unit is easy to install. The scanning system basically consists of the following elements.

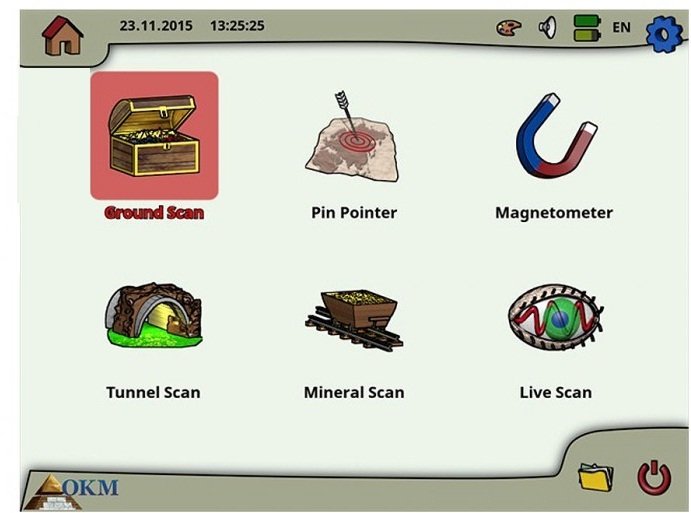

Touchscreen controller, multilingual graphical interface, automatic brightness control, GPS (user activated)

max.Telescopic rod assembly
- Operating temperature: 0°C - 70°C
- Storage temperature: -20 °C - 60 °C
- Humidity: 5% - 75%
- Not waterproof
- Dimensions: 640 x 140 x 250 mm
- Weight: about 1900 g
- Voltage 11.8-14.8 VDC, max. 30W
- Degree of protection IP40
- Working time about 5 hours
- ARM Cortex M0 + @ 48MHz
- Working memory 32 KB
- 256 KB data memory
- 802.11na/b/g Wi-Fi data transmission, MIMO 2x2
- 11 Mbps - 54 Mbps data transmission
- Working distance up to 30 meters

Computer minimum requirements
- 4x CD-ROMs
- USB interface (data transfer)
- 50 MB of free disk space
- 256MB of RAM
- 128 MB graphics card, compatible with OpenGL
- 1.2 GHz processor
- Windows XP operating system, Windows Vista, Windows 7, Windows 8, Windows 10

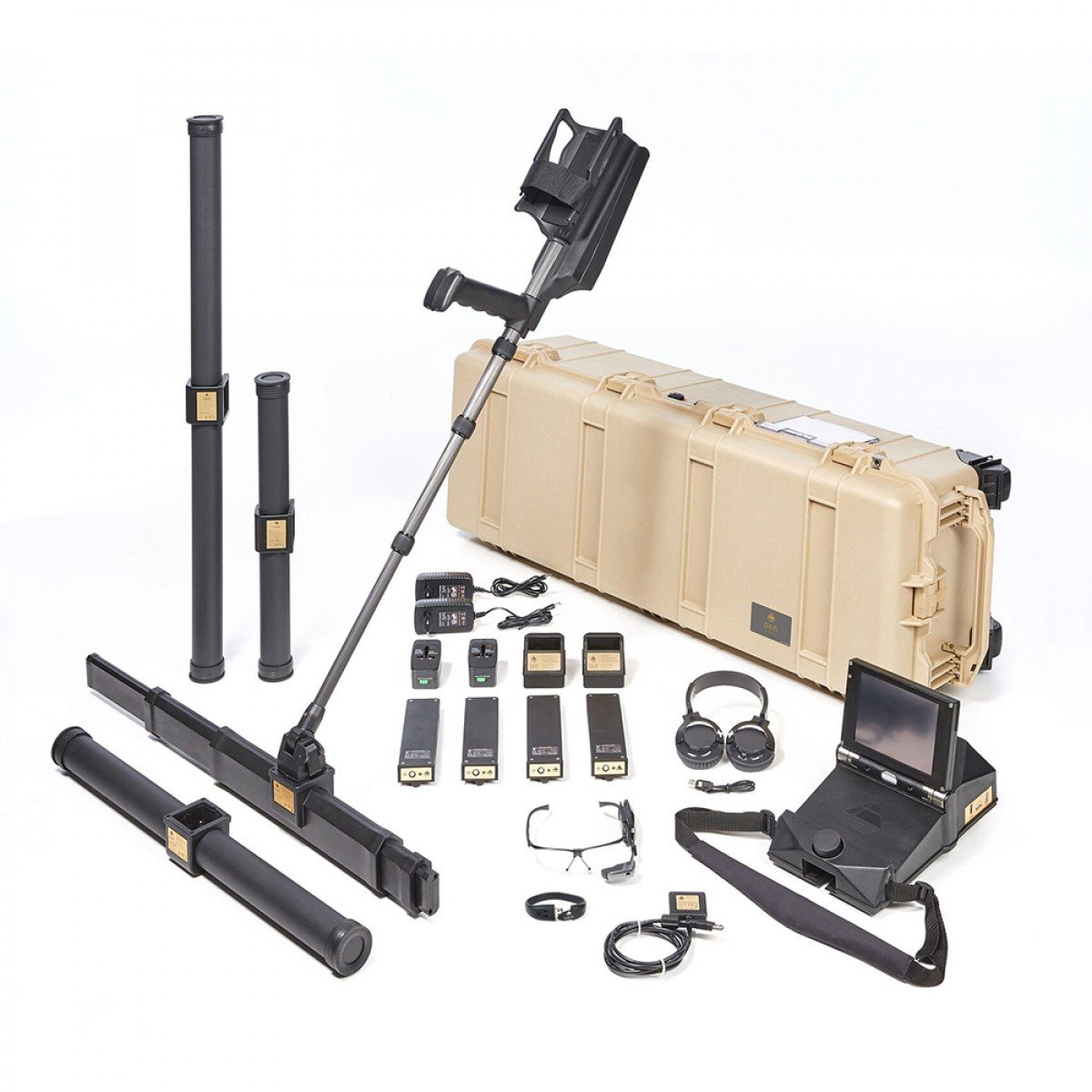

Hardware included

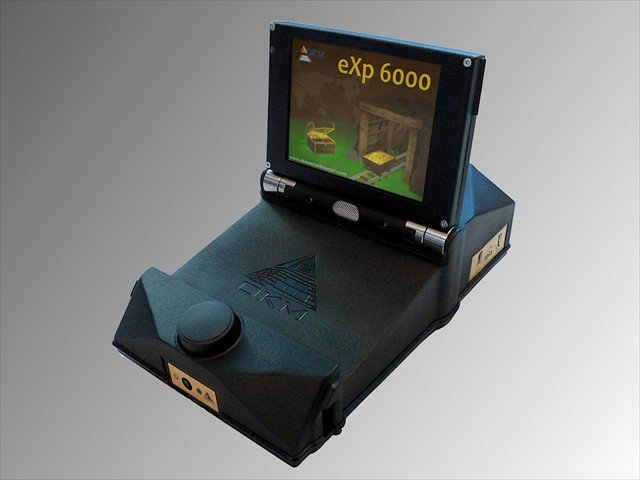

- EXP 6000 control unit
- 3D Viewer
- No. 2 charging station and travel adapter
- 2 rechargeable Power Pack batteries
- Telescopic rod
- USB
- Carrying bag
-
Wireless headphones with battery - Super Sensor
- Telescopic probe (50-120 cm)
