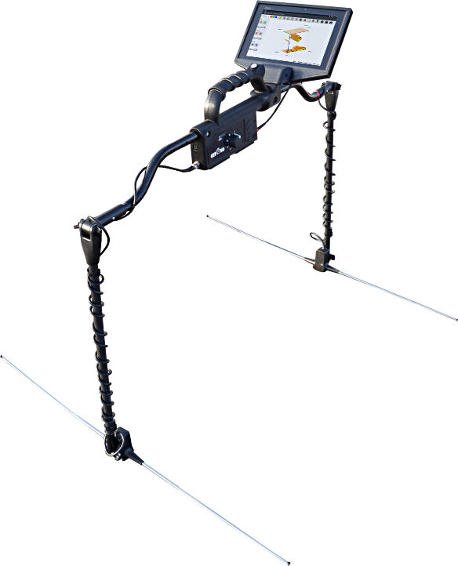

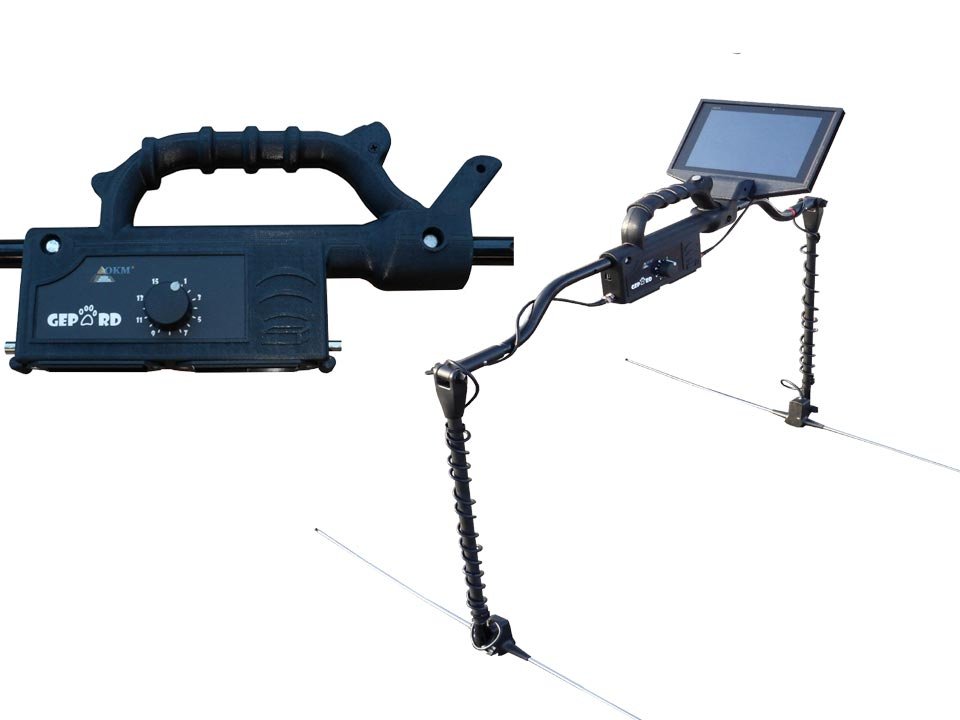

OKM Gepard GPR 3D Metal Detector with Android Tablet

Gepard GPR is a very flexible, portable and ground penetrating radar for detecting underground elements such as pipes, cavities, cables, channels, tunnels, bunkers, foundations.

The OKM Gepard Ground Penetrating Radar uses an unshielded omnidirectional transmission system to reach maximum depths of up to 40 meters. This light, agile and compact unit can be easily operated by a single operator.

RADAR (Detection and Radio Range) sends a signal to the ground and receives the signal to detect surface anomalies such as:

Underground walls, basements and reinforced concrete reinforcements.
Hidden spaces, tombs and tombs.
Water level and underground rivers and aquifers.
Buried pipes, ducts and cable bundles.
Filled wells, galleries, ditches and huts.
Septic tanks, distribution boxes and drainage pipes.
Secret tunnels, bunkers and shelters.
Buried treasure chests, statues and hiding places.

Gepard ground radar uses a multi-transmission frequency range from 60 MHz to 300 MHz with adjustable telescopic antennas. It also supports automatic adjustments to optimize your field investigations on certain soil types.

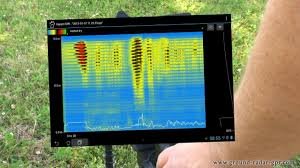

The measured ground penetrating radar data is transferred directly to an Android tablet. The Android software receives the data via Bluetooth and displays it immediately on the screen.

The software has the ability to integrate a signal with Google Maps, automatic filtering and note entry to recall certain browsing details later. Also, the automatic filtering features are useful for improving your scan results and finding hidden objects and structures more easily. Thanks to the integrated GPS, all scan locations can be stored with the scan data.

Android software applications are available in the following languages:
EnglishFrançais, Deutsch,Turkish, Español, λληνικά, Italiano, فارسی.

Ground penetrating radar "Gepard GPR"
Optional accessories for OKM Power Pack: Instead of using AAA batteries, you can also use the Power Pack to operate the "Gepard GPR" ground penetrating radar. In this way, you can operate your ground radar for up to 10 hours without changing the battery every 3 hours.
