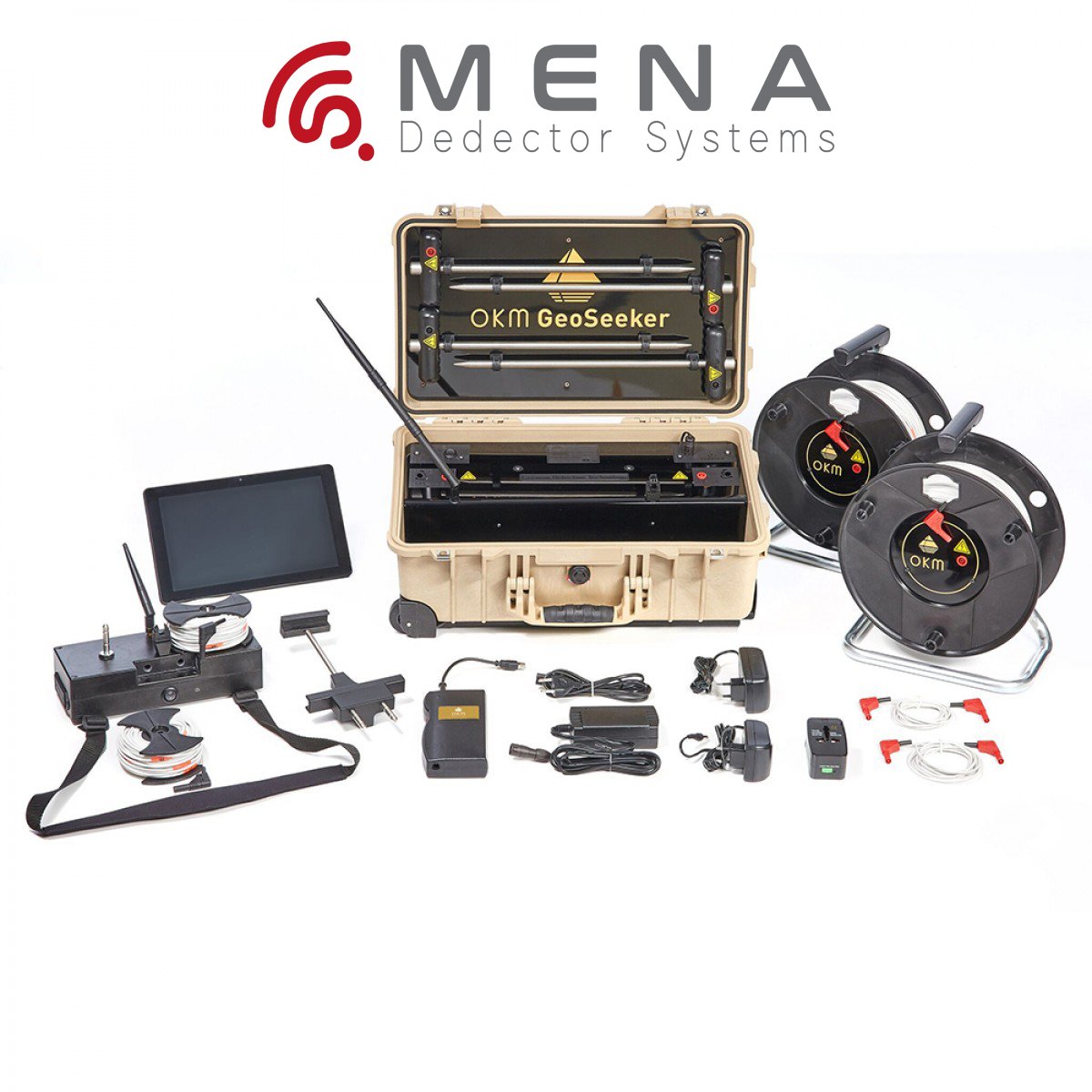

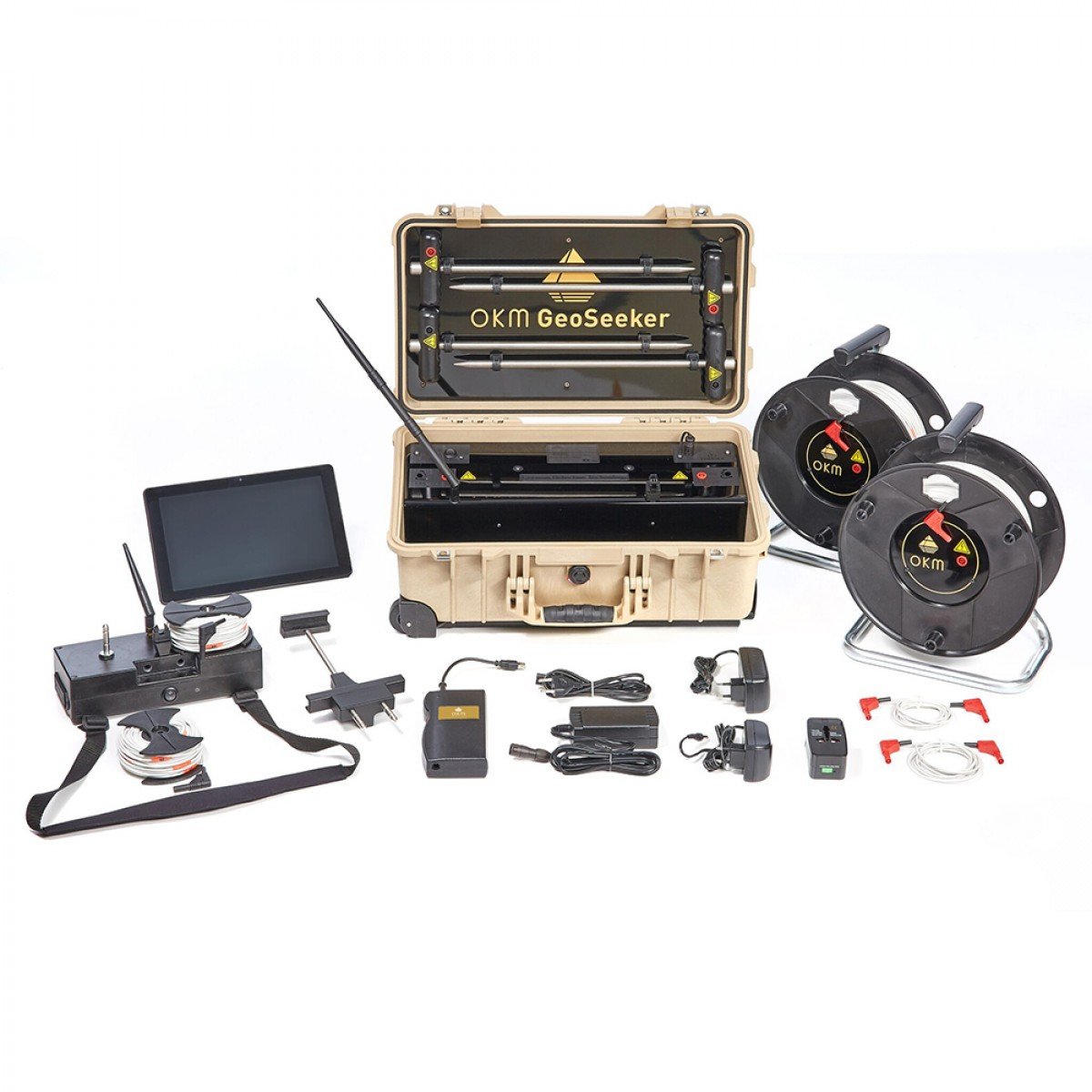

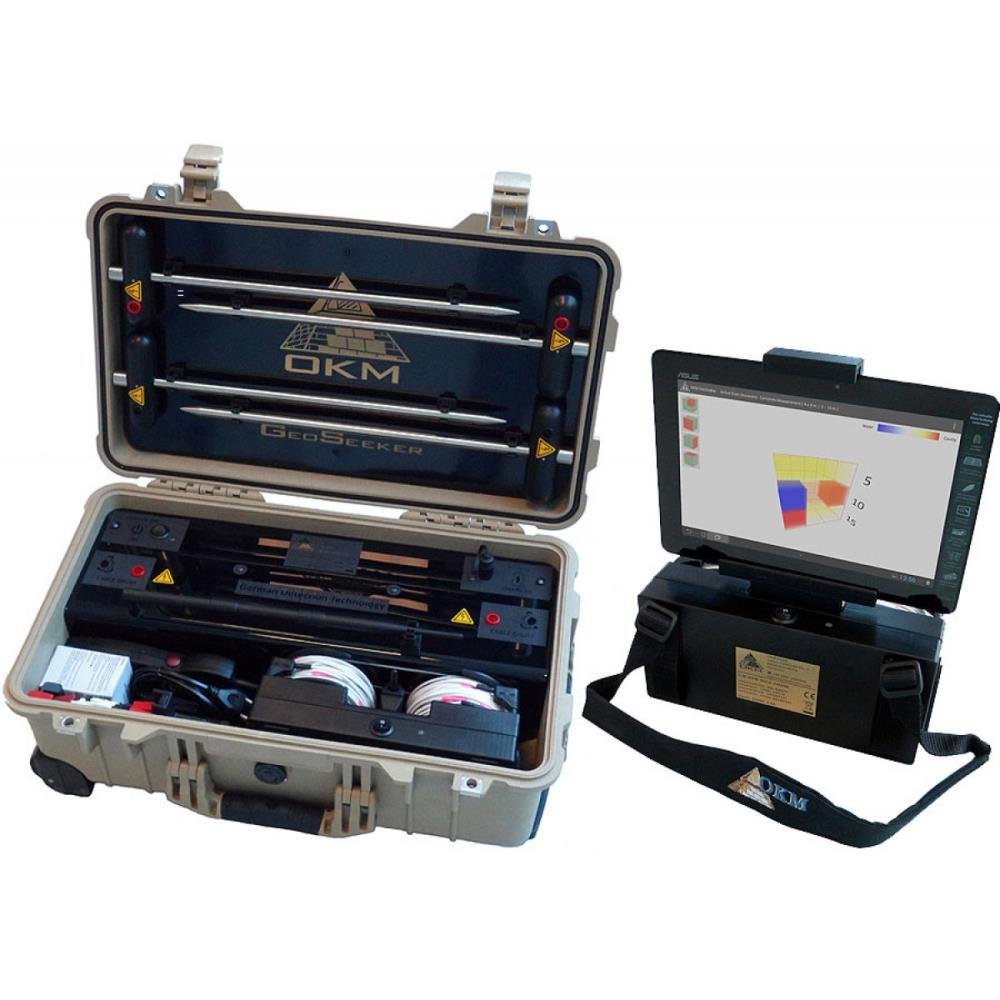

OKM GeoSeeker

The OKM GeoSeeker Water and Cave Finder is the most accurate and deepest detection Ground penetration finder OKM has ever offered. The GeoSeeker can output a large scanning voltage of up to 390 Volts in Active Scan modes. Active scanning mode is the most accurate scanning method and will give the best results where there is water and caves or caves.

The Geoseeker can also operate in a passive scan mode without direct power input, which can only measure the naturally occurring voltage present in the ground. This type of dredging is suitable in sloping areas with underground waterways. GeoSeeker can easily make accurate 3D Graphics scans of underground resistance up to a maximum depth of 820 feet or 250 meters. Easy to follow step-by-step guided measurements and wireless data transfer to Tablet PC make using this highly advanced Geoelectric detector one of the deepest and easiest to use!

Technicial Specifications:

2 years warranty
Controller (Receiver Unit)
ADC : 16 Bit
Weight : 1.3 lb (0.6 kg)
CPU : 80 MHz Cortex M3
Input (Charger): 12 VDC, 1.5 A
Power Supply (8 AA batteries): 8-14 VDC*
Effective Range (differential): -700 to +700 mV
Working Time (charged batteries): Min. 16 hours
Measurement Time per Scan Point: Min. 16 Seconds
Dimensions (H x W x D): 5" x 10" x 4" (130 x 270 x 110 mm)
Charge Time (empty batteries): Typically 3 Hours, Max. 5 hours
Weight (with mounted cable reels and batteries): 4.6 lbs (2.1 kg)
Communication with Power Box: 2.4 GHz Band, Optional, Proprietary
Communication with Tablet PC: WLAN-Access Point, 2.4 GHz Band, Channel 6, WPA2
Data Sampling Rate: 4096 Hz (64 times oversampling of the average value of 512 samples)
Power Box (Send Unit)
Weight: 34.8 lb (15.8 kg)
Input (Charger): 24 VDC, 2 A
Charging Time: Max. 8 hours
Output : Max. 390 V, 0.5 A, 20 W
Run Time (max. power): Approx. 8 hours
Run Time (min. power): Approx. 100 Hours
Run Time (average power): Approx. 40 Hours
Weight (with mounted electrodes): 39.6 lbs (18 kg)
Internal Power Supply: Lead Acid Battery (2 x 12 V, 10Ah)
Dimensions (H x W x D): 9" x 21" x 14" (230 x 550 x 360 mm)
Communication with Controller : 2.4 GHz Band, Optional, Proprietary
electrodes
Weight: 1.14 lb (0.52 kg)
Dimensions (L x W x D): 17" x 4" x 1" (440 x 120 x 35 mm)
Power Drum (He 290 mm)
Markers: 15
Weight: 14.3 lb (6.5 kg)
Cable Length : 836′ (255 m)
Dimensions (H x W x D): 14" x 11" x 7" (360 x 290 x 200 mm)
Tension Drum (O 100 mm)
Markers : 25
Cable Length : 85′ (26 m)
Weight: 1.43 lb (0.65 kg)
Dimensions (H x W x D): 4" x 4" x 1" (120 x 120 x 45 mm)
Tablet PC, Minimum Requirements
Wi-Fi / WLAN : Required
USB Rechargeable : Micro-USB-B
Operating System: Android 4.0.3 or Higher
Display : 10″ Tablet Display, Outdoor Brightness

Properties:

Mobile Geo-Electric Detector
Wireless Data Transfer to Tablet PC
3D Graphics of Underground Resistance
Easy Step-by-Step Guided Measurements
